DESCRIPTION
The 4515 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a load switch or in PWM applications.
GENERAL FEATURES
● RDS(ON)<22mΩ @ VGS=4.5V
RDS(ON)<15mΩ @ VGS=10V
● High Power and current handing capability
● Lead free product is acquired

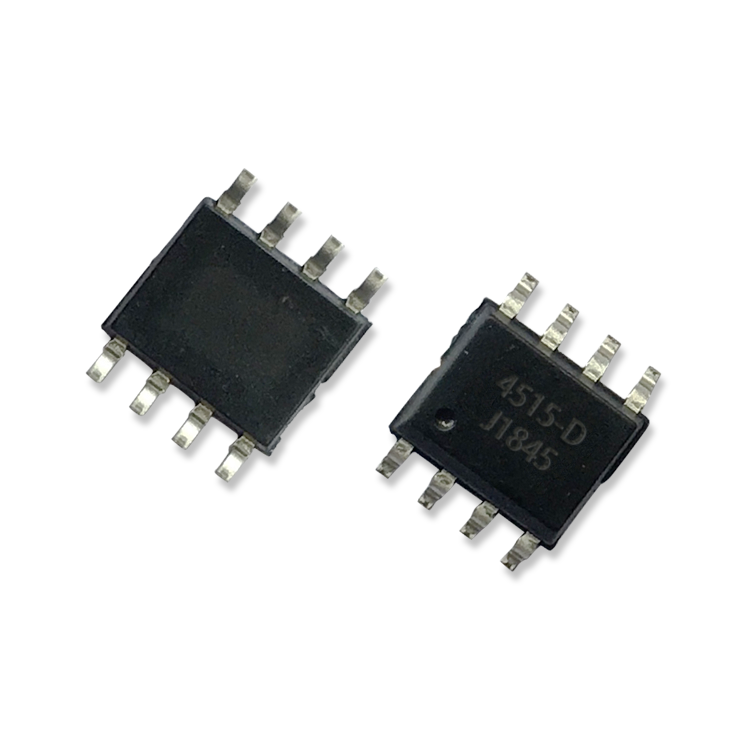

● Surface Mount Package
Application
● PWM applications
● Load switch
● Power management
![4515 4515]()
![4515 4515]()
ELECTRICAL CHARACTERISTICS (TA=25℃unless otherwise noted)
![4515 4515]()
NOTES: 1. Pulse Test: Pulse Width ≤ 300µs, Duty Cycle ≤ 2%.
2. RθJA is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins.RθJC is guaranteed by design while RθCA is determined by the user's board design. RθJA shown below for single device operation on FR-4 in still air.
