产品名称:

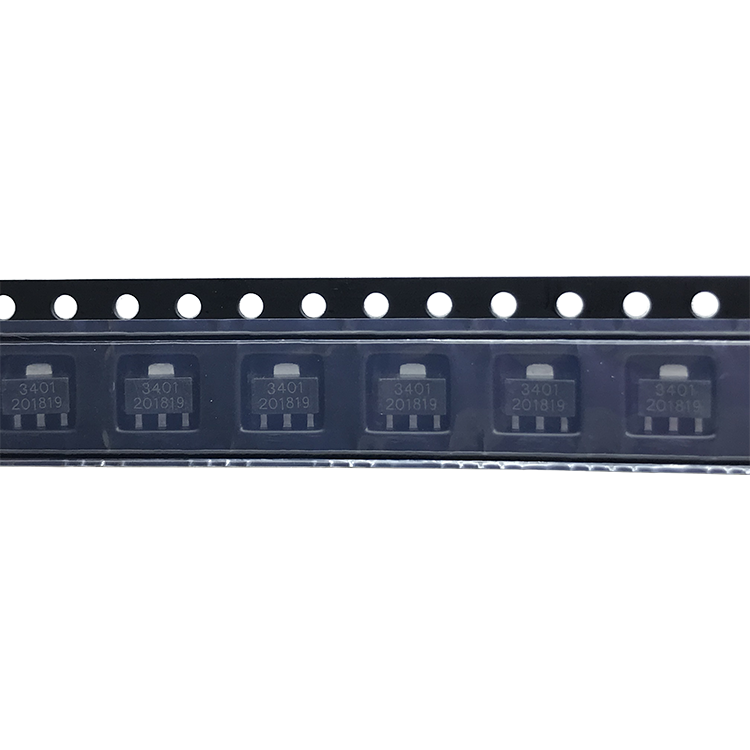

3401

耐压: 30V
输出电压:
输出电流:
输出电压精度:
输出限流精度:
线补:
频率:
限流:
OCP/OVP:
OTP:
MOS:
工作模式:
封装: SOT23-3
备注:
定制下载附件表 Click to download
Introduce

General Description


The 3401 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a load switch or in PWM applications.


3401


GENERAL FEATURES


●  RDS(ON) < 70mΩ @ VGS=-4.5V

●  RDS(ON) < 60mΩ @ VGS=-10V

●  High Power and current handing capability

●  Lead free product is acquired

●  Surface Mount Package


Application


●  PWM applications

●  Load switch

●  Power management


ABSOLUTE MAXIMUM RATINGS(TA=25℃unless otherwise noted)


3401


















ELECTRICAL CHARACTERISTICS (TA=25℃unless otherwise noted)


3401

NOTES:  a. Surface Mounted on FR4 Board, t<10 sec.

               b. Pulse Test:Pulse Width < 300 μs, Duty Cycle < 2%.

               c. Guaranteed by design, not subject to production testing
