产品名称:

CX7504

工作模式:
推荐功率范围: 32W
常用规格: 5V3.4A

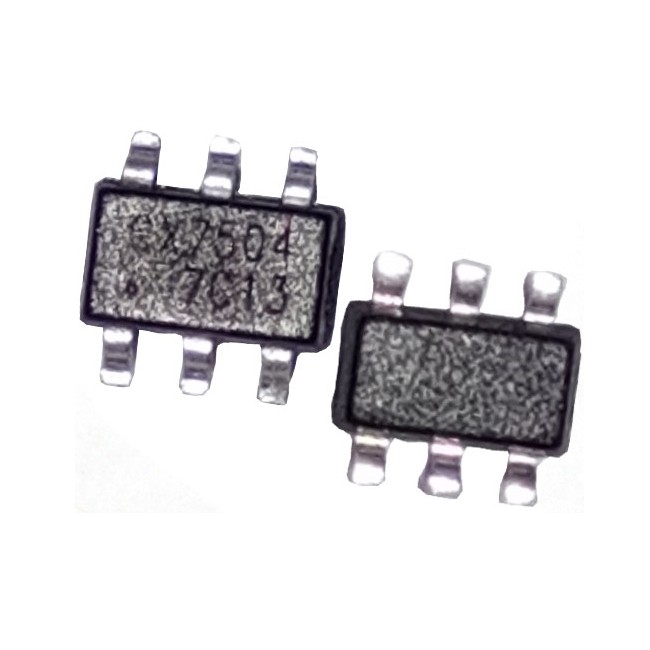

封装: SOT23-6
备注: 外置MOS管 无补偿元件动态优 带载启机动性能好
线补:
频率:
限流:
OCP/OVP:
OTP:
MOS:
工作模式:
封装: SOT23-6
备注: 外置MOS管 无补偿元件动态优 带载启机动性能好
定制下载附件表 Click to download
Introduce

GENERAL DESCRIPTION


CX7504 is a high performance offline PWM controller for low power AC/DC charger and adapter applications. It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated. High Precision Constant Voltage (CV) and Constant Current (CC) control are integrated as shown in the figure below.

In CC control, the current and output power setting can be adjusted externally by the sense resistor Rs at CS pin. In CV control, multi-mode operations are utilized to achieve high performance and high efficiency. In addition, good load regulation is achieved by the built-in Cable Drop Compensation. Device operates in PFM in CC mode as well at large load condition and it operates in PWM with

frequency reduction at light/medium load. The chip consumes very low operation current, it can achieve less than 80mW standby power.

CX7504 offers comprehensive protection coverage with auto-recovery features including

Cycle-by-Cycle current limiting, VDD Over Voltage Protection (VDD OVP), short circuit protection, built-in leading edge blanking, VDD under voltage lockout (UVLO), OTP, etc.

High precision constant voltage (CV) and constant current (CC) can be achieved by CX7504. CX7504 is offered in SOT23-6 package.


FEATURES


■ ± 5% Constant Voltage Regulation and Current Regulation at Universal AC Input

■ Primary Side Regulation (PSR) Without TL431 and Opto-coupler

■ No Need for Control Loop Compensation

■ Programmable CV and CC Regulation

■ Multi-Mode PWM/PFM Operation

■ Output Short Load Protection

■ Less than 80mW Standby Power

■ Built-in Line Voltage and Primary Winding Inductance Compensation

■ Built-in Adaptive Current Peak Regulation

■ Programmable Cable Drop Compensation

■ Audio Noise Free Operation

■ Built-in Over Temperature Protection (OTP)

■ Soft Gate Driver for Good EMI Performance

■ Built-in Leading Edge Blanking (LEB)

■ Cycle-by-Cycle Current Limiting

■ VDD Under Voltage Lockout with Hysteresis(UVLO)

■ VDD OVP & Clamp


APPLICATIONS


Low Power AC/DC offline SMPS for

■ Cell Phone Charger

■ Digital Camera Charger

■ Small Power Adapter

■ Auxiliary Power for PC, TV etc.

■ Linear Regulator/RCC Replacement


TYPICAL APPLICATION


CX7504


GENERAL INFORMATION

The pin map of SOT23-6 package is shown asbelow.


CX7504


CX7504


CX7504


CX7504
