产品名称:

4504

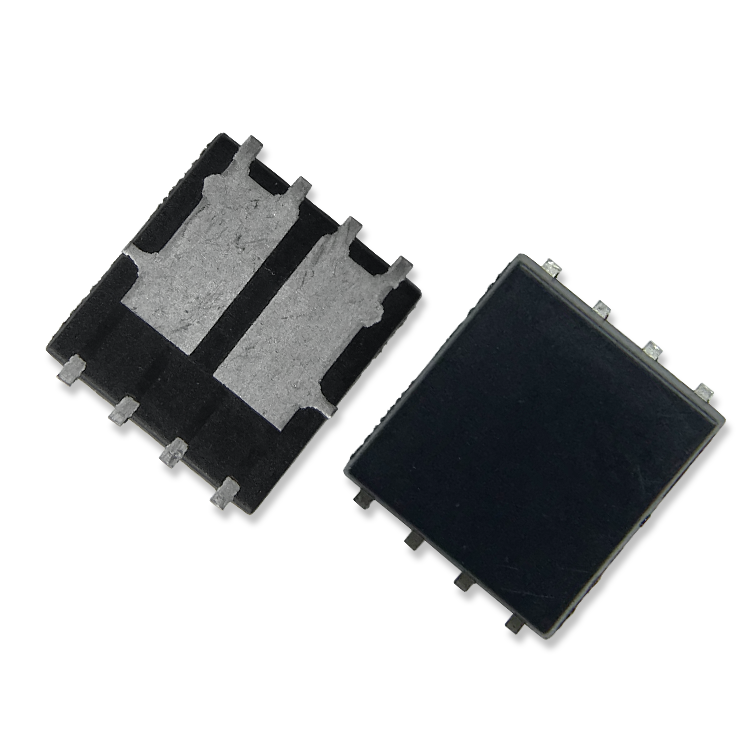

封装: DFN5*6-8
耐压: 40V
电流: 20A
应用通道: N+N
内阻: 15MR
输入电流: 1350PF
脉充电流: 112A
限流:
OCP/OVP:
OTP:
MOS:
工作模式:
封装: DFN5*6-8
备注:
定制下载附件表 Click to download
Introduce

DESCRIPTION


The 4504 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a load switch or in PWM applications.


4504


GENERAL FEATURES


●  RDS(ON)<22mΩ @ VGS=4.5V

    RDS(ON)<15mΩ @ VGS=10V

●  High Power and current handing capability

●  Lead free product is acquired

●  Surface Mount Package


Application


●  PWM applications

●  Load switch

●  Power management


ABSOLUTE MAXIMUM RATINGS(TA=25℃unless otherwise noted)


4504


ELECTRICAL CHARACTERISTICS (TA=25℃unless otherwise noted)


4504

NOTES: 1. Pulse Test: Pulse Width ≤ 300µs, Duty Cycle ≤ 2%.

              2. RθJA is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins.RθJC is guaranteed by design while RθCA is determined by the user's board design. RθJA shown below for single device operation on FR-4 in still air.
