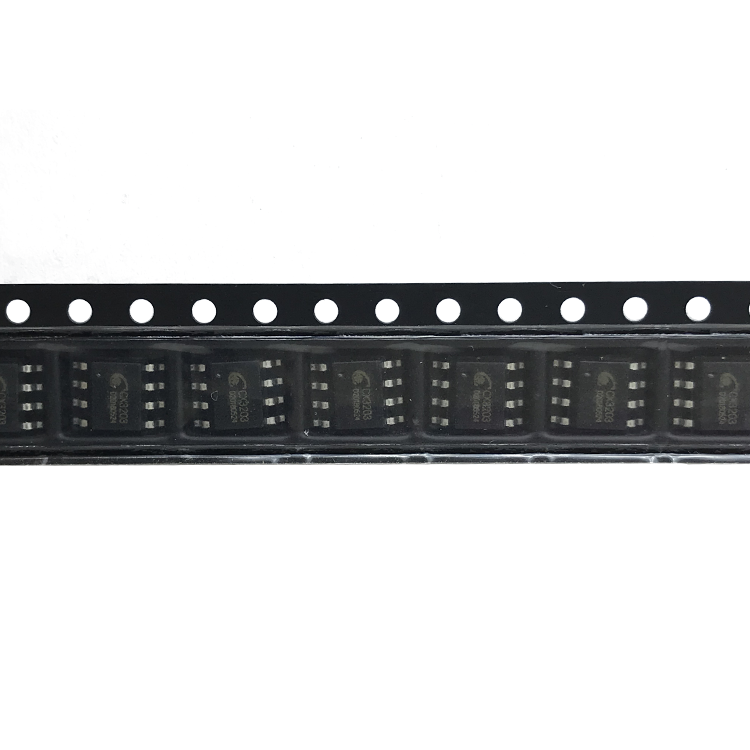

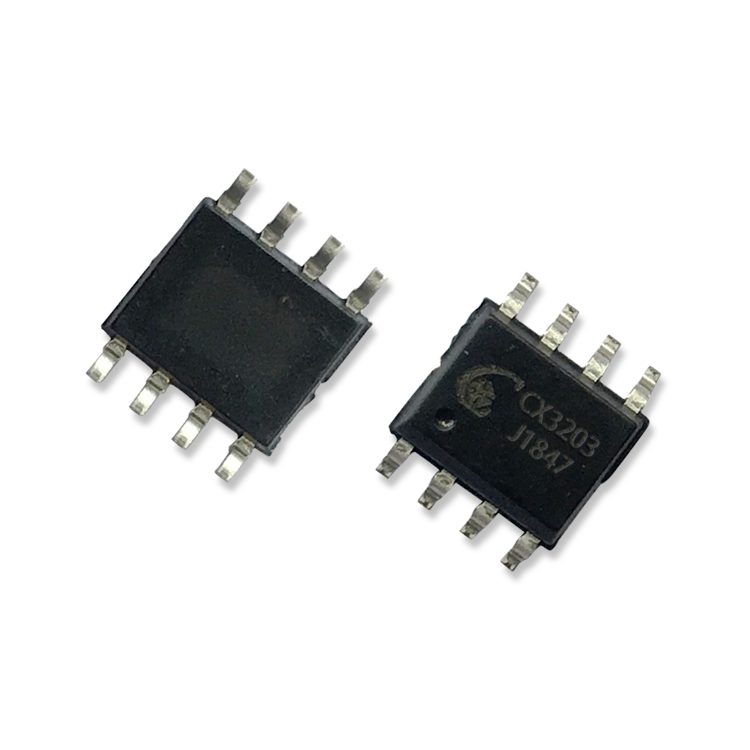

产品名称:

3203

封装: SOP8
耐压: 30V
电流: 7A*2
应用通道: N+N
内阻: 20MR
输入电流: 580PF
脉充电流: 28A
限流:
OCP/OVP:
OTP:
MOS:
工作模式:
封装: SOP8
备注:
定制下载附件表 Click to download
Introduce

General Description


The CX3203 uses advanced trench technology to provide excellent RDS(ON) and low gate charge.The complementary MOSFETs may be used to form a level shifted high side switch,and for a host of other applications. Pin Description


Featuration


●  N-Channel

    36V/7A,

    RDS(ON)=20mΩ (MAX.) @ VGS=10V

    RDS(ON)=30mΩ (MAX.) @ VGS=4.5V

●  Super High Dense Cell Design

●  Reliable and Rugged


Applications


●  Power Management in Notebook Computer

●  Portable Equipment

●  Battery Powered Systems


Maximum Ratings (Ta = 25℃)

3203


Electrical Characteristics (TA = 25)

3203



Package Dimensions:

SOP-8

3203


3203
