产品名称:

3400

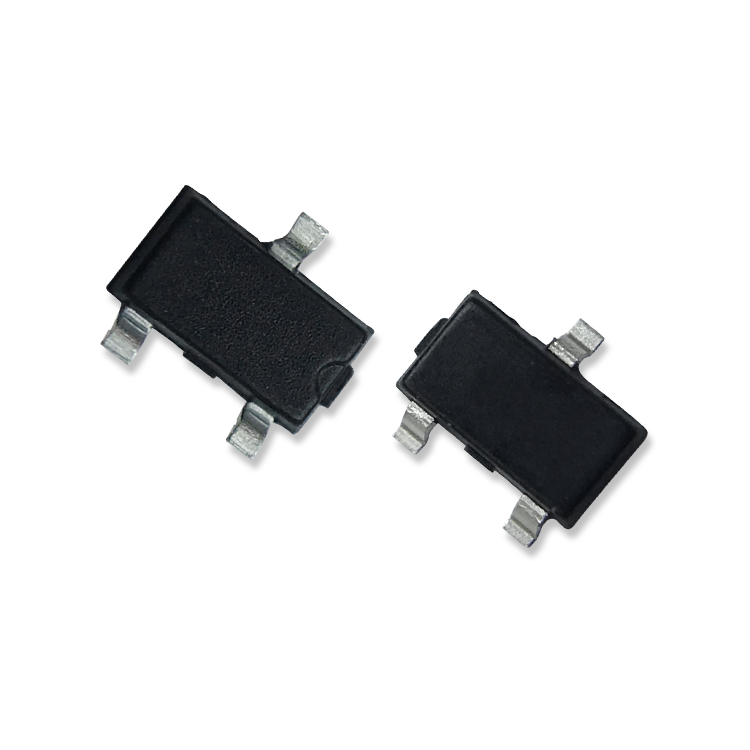

封装: SOT23-3
耐压: 30V
电流: 5.8A
应用通道: N
内阻: 30MR
输入电流: 1050PF
脉充电流: 15A
限流:
OCP/OVP:
OTP:
MOS:
工作模式:
封装: SOT23-3
备注:
定制下载附件表 Click to download
Introduce

General Description


The AO3400 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a load switch or in PWM applications. Standard Product AO3400 is Pb-free (meets ROHS & Sony 259 specifications). AO3400L is a Green Product ordering option. AO3400 and AO3400L are electrically identical.


Features

VDS (V) = 30V

ID = 5.8 A (VGS = 10V)

RDS(ON) < 28mΩ (VGS = 10V)

RDS(ON) < 33mΩ (VGS = 4.5V)

RDS(ON) < 52mΩ (VGS = 2.5V)


3400


Electrical Characteristics (TJ=25°C unless otherwise noted)


3400

A: The value of RθJA is measured with the device mounted on 1in 2 FR-4 board with 2oz. Copper, in a still air environment with T A =25°C. The value in any given application depends on the user's specific board design. The current rating is based on the t ≤ 10s thermal resistance rating.

B: Repetitive rating, pulse width limited by junction temperature.

C. The R θJA is the sum of the thermal impedence from junction to lead RθJL and lead to ambient.

D. The static characteristics in Figures 1 to 6,12,14 are obtained using 80 µs pulses, duty cycle 0.5% max.

E. These tests are performed with the device mounted on 1 in 2 FR-4 board with 2oz. Copper, in a still air environment with T A=25°C. The SOA curve provides a single pulse rating.

Rev 4 : June 2005


THIS PRODUCT HAS BEEN DESIGNED AND QUALIFIED FOR THE CONSUMER MARKET. APPLICATIONS OR USES AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS ARE NOT AUTHORIZED. AOS DOES NOT ASSUME ANY LIABILITY ARISING OUT OF SUCH APPLICATIONS OR USES OF ITS PRODUCTS. AOS RESERVES THE RIGHT TO IMPROVE PRODUCT DESIGN,

FUNCTIONS AND RELIABILITY WITHOUT NOTICE.
